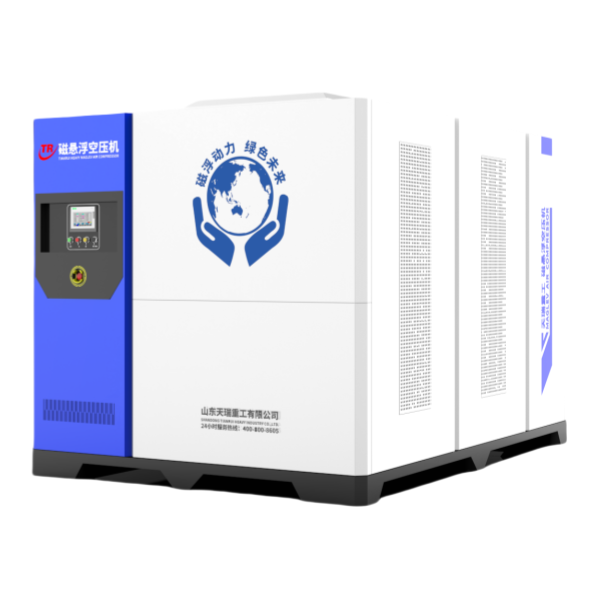

Maglev Air Compressor

Maglev Air Compressor
Product Introduction:

The maglev air compressor is a high-tech green equipment independently developed by Tianrui Heavy Industry that is energy-saving and environmentally friendly. Compared with traditional air compressors, the impeller and rotor of the maglev air compressor are directly connected, eliminating the speed increase gearbox, which can improve the efficiency of the whole machine and save energy by more than 20%; no lubricating oil is required, 100% oil-free; small vibration, noise less than 80dB; highly integrated, easy to install and maintain. It can be widely used in textile, fermentation, chemical, glass, mining, electricity, food, pharmaceutical, papermaking, automobile and other fields.


Send Inquiry
Description

Specification And Model



Model

Product Specifications


Flow(m³/min)

Pressure(bar)

Motor Power(kW)

TRA110 SERIES

23~42

2~5

110

TRA150 SERIES

44~58

2~3

150

TRA200 SERIES

60~78

2~3

200

TRA250 SERIES

75~98

2~3

250

TRA300 SERIES

90~120

2~3

300

TRA350 SERIES

105~140

2~3

350

TRA400 SERIES

120~158

2~3

400

Notes

Model meaning: brand-equipment abbreviation-power (kW). Example: TRA110 series, TR is the brand, A represents air compressor, and 110 represents power 110kW.



Performance Characteristics
